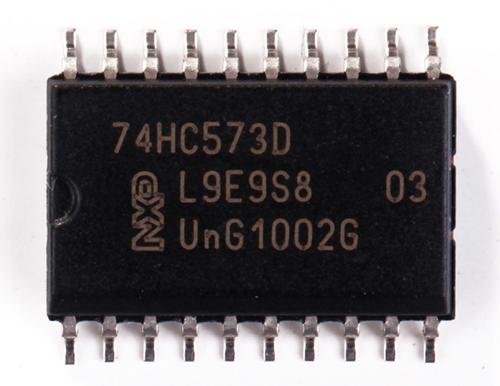

The 74HC573D is an octal transparent D Latch pin compatible with low-power Schottky TTL (LSTTL). It features separate D-type inputs for each latch and 3-state true outputs for bus-oriented applications. A LE input and an OE input are common to all latches. When LE is high, data at the Dn inputs enter the latches. In this condition, the latch is transparent, i.e. a latch output changes state each time its corresponding D input changes. When LE is low the latches store the information that was present at the D-inputs a set-up time preceding the high-to-low transition of LE. When OE is low, the contents of the 8 latches are available at the outputs. When OE is high, the outputs go to the high-impedance OFF-state. Operation of the OE input does not affect the state of the latch.
